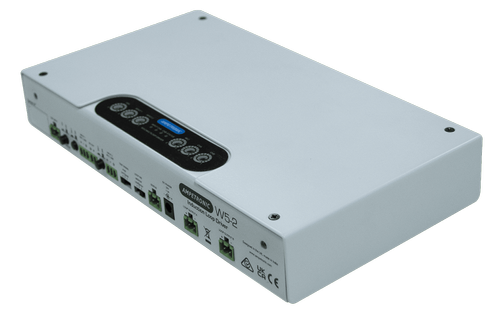

AMPETRONIC Teleslynge forsterker 5A, 2kanal-Veggmontert-m/"cable tray"

INPUTS & SIGNAL PROCESSING MIC Line UNITS Input figures quoted at maximum front panel gain control setting. INPUT 1 & 2: (mic/Line) 3 way, 3.5mm phoenix, balanced, suitable for up to 600Ohm microphones or line level. Input impedance 8,700 8,700 ? Sensitivity -69 -45 dBu Overload -33 -9 dBu 100V: Isolated 100V line input Input impedance 120,000 ? Sensitivity +11 dBu Overload +47 dBu AGC: Compression of signal indicated by green INPUT LED when active and RED when overloaded. Input range >36 dB Output range ±1 dB Min. input level for AGC See sensitivity Attack time 3.5 ms Decay time 1.4 s METAL LOSS CORRECTION: Specially designed adjustable filter to compensate for the effects of metal loss. Gain @ 1kHz remains constant. Min. slope 0 dB/oct. Max. slope +3 dB/oct. LOOP IND: High shelf filter options to compensate for the effect of loop inductance on the class D output stage Low No effect Med 3dB max starting from ~1kHz High 4.8dB max starting from ~1kHz Test Signals: Internally generated signals for commissioning which when activated interrupt the input audio signal. Off Audio signal passed Field Single 1k tone Hz Freq Combined 100, 1k & 5k sine tones Hz DC Power Power figures for reference only. With unit set for maximum output with the input in AGC. Only use the provided DC power supply. Voltage 24 V Current idle 0.28 A Current pink noise 1.3 A Current sine 3.2 A OUTPUTS UNITS LOOP OUTPUT: 2x 2way, 5mm, phoenix. Voltage 7.8 VRMS Current 5 ARMS Continuous pink noise 2.5 ARMS THD +N (1kHz, sine, max output) 0.5 % Maximum loop resistance 0.6 (at maximum current) ? Frequency response ±3dB, 100 to 5000Hz DC OUT: 2 way, 3.5mm, Phoenix. Fuse protected output for ancillary devices. Voltage 24 V Current 0.1 A Status:2 way, 5mm, Phoenix. Volt free relay contacts indicating fault condition when open. Contact rating (resistive load) 12A, 125Vac 10A, 250Vac 10A, 30Vdc PROTECTION FEATURES UNITS Thermal Protection: If the PA amplifier reaches a pre-determined level the output current will be gradually attenuated followed by shutdown. Output attenuation Max -4dB @ 90 °C Unit shutdown (Requires power cycle to recover) PA chip junction temp>155 °C °C DC input over-current Output attenuation Max 4dB >5A dc input Output over-current Unit shutdown (Requires power cycle to recover) >10A loop current PHYSICAL CHARACTERISTICS UNITS Dimensions: Width 270 mm Height 152 mm Depth 42 mm Weight 1.1 kg Operating temperature -10 to 40 °C Ingress protection rating 30 IP
